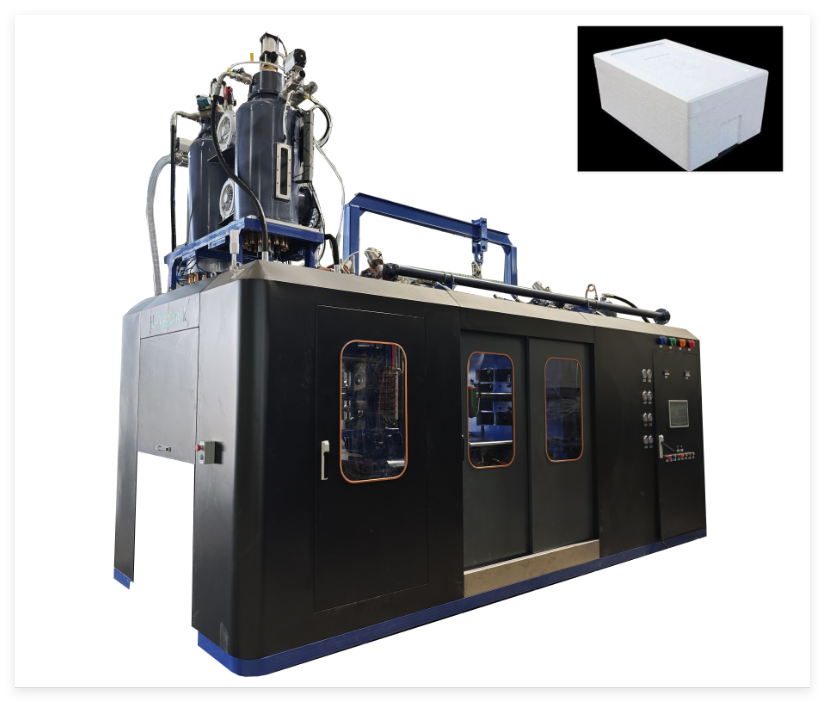

Automatic Shape Moulding Machine EPS/ETPU SFA-680A
Automatic Shape Moulding Machine EPS/ETPU SFA-680A

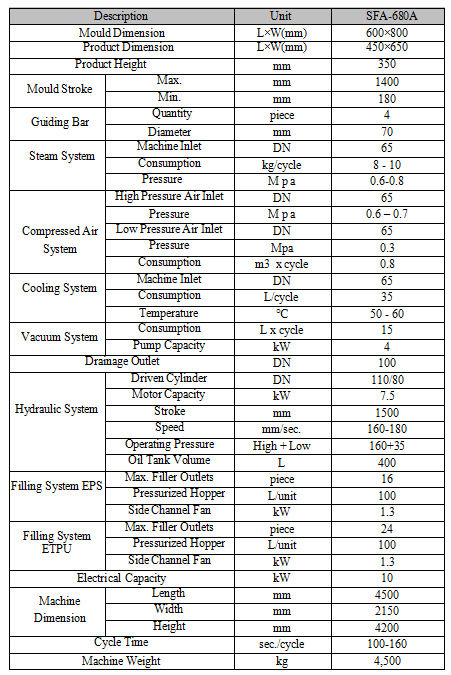

Press Frames Dimension: 600 x 800 mm
Stroke of Machine: 1400 mm
Operating pressure: 4.0 bar
Applications:
1.Material research & testing in labs
2.Sample property analysis (via energy curves)
3.EPS and ETPU molding processes
Stroke of Machine: 1400 mm
Operating pressure: 4.0 bar
Applications:
1.Material research & testing in labs
2.Sample property analysis (via energy curves)
3.EPS and ETPU molding processes
Key Features of the Laboratory Shape Molding Machine:
Specialized Design
Designed specifically for laboratory applications in shape molding
Energy Analogue Curves Analysis
Generates distinctive energy analogue curves per cycle to
analyze the physical properties of individual samples
Data Acquisition & Print Interface
Equipped with a parameter data acquisition interface
and supports print-out functionality
ETPU Molding Compatibility
Provides an alternative solution for ETPU
(Expanded Thermoplastic Polyurethane) molding
|
|
